Fixed ETO Gas Detector with Fast Response 4-20mA RS485 Output and Imported Sensor

Name: Fixed ETO Gas Detector with Fast Response 420mA RS485 Output and Imported Sensor
Brand: Safegas
Price: 450 USD

Wholesale Fixed ETO Gas Detector with Fast Response 4-20mA RS485 Output and Imported Sensor from china suppliers

Brand Name : Safegas

Model Number : YT-95H

Certification : CE ISO

Place of Origin : China

MOQ : 1

Price : 450USD

Payment Terms : T/T

Supply Ability : 1000 PCS/Day

Delivery Time : 3-10 Days

Packaging Details : Carton

Product Name : Gas Detector

Gas : ETO

Measure Range : 0-100PPM

Resolusion : 0.1PPM

Explosionproof Grade : Ex D IIC T6 Gb

Humidity : 0-95%RH(nocondensation)

Language : Chinese and English

Size : 180×150×90mm

Weight : ≤1.6kg

Power : 12-36V DC

Detection Principle : Specified According To Application

Connection Mode : G1/2 External Thread Explosion-proof Flexible Pipe

Contact Now

Fixed ETO Gas Detector Fast Response 4-20mA RS485 Output with Imported Sensor

Product Overview

YT-95H Fixed ETO Gas Detector is a high-precision gas detection system utilizing diffusion detection principle, specifically designed for industrial safety applications. The YT-95H/YT-95H-A series represents a cost-effective explosion-proof transmitter for detecting flammable and toxic gases.

Key Features

Online monitoring with optional sound/light alarm system
24-hour continuous monitoring with real-time data display
High/low alarm with sound (>90dB) and light, with settable alarm points
Non-contact device control via infrared ray controller
Multiple installation methods with 4-20mA current signal output
RS485 MODBUS and relay signal outputs for external device control
Data transmission to PC software with optional wireless capabilities (Lora, 4G)
High-quality die-cast aluminum case with IP65 protection rating
Optional stainless steel case for various environmental requirements

Technical Specifications

Gas Detected	ETO
Detection Principle	Electrochemical
Measure Range	Specified according to application
Resolution	Specified according to application
Accuracy	≤±2-5%FS (depending on the specific sensor)
Response Time (T90)	15-30s (depending on the specific sensor)
Repeatability	≤±1%
Zero Shift	≤±1% (F.S./year)
Display	4 digits Nixie tube display
Connection Mode	G1/2 external thread explosion-proof flexible pipe
Thread Size	M45×2mm
Temperature Range	-20℃ ~ 50℃
Humidity Range	0-95%RH (no condensation)
Material Case	Die-cast aluminum, Sensor housing: aluminum alloy or 316 stainless steel
Power Supply	12-36V DC
Dimensions	180×150×90mm
Weight	≤1.6kg
Explosion-proof Grade	Ex d IIC T6 Gb

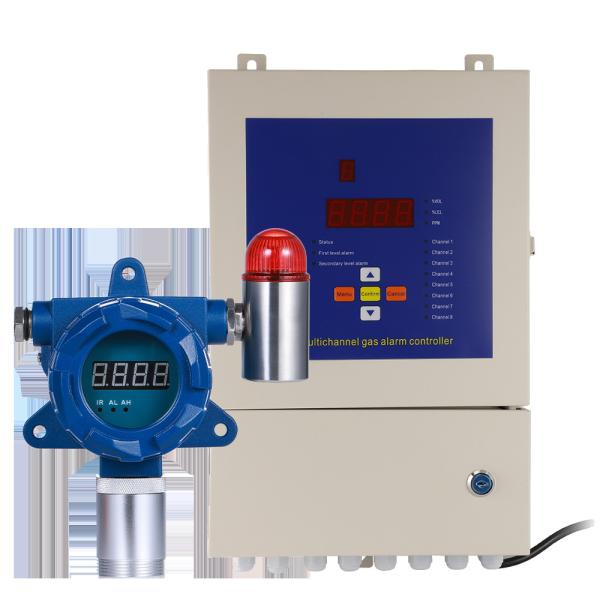

Product Images

Fixed ETO Gas Detector with Fast Response 4-20mA RS485 Output and Imported Sensor

Company Advantages

R&D team experience: over 25 years
Company certifications: ISO9001, ISO45001
Product certifications: IECEx, ATEX, CE
Delivery time: 5-7 days
Annual capacity: 80,000 units
Professional 7*24 hours customer service

Manufacturer Profile

Established in 2010, Shenzhen Yuan Te Technology Co., Limited (Safegas) specializes in the design, production, and sales of gas detection equipment and systems. With 16 years of industry experience, we provide comprehensive solutions for various sectors including Oil, Chemical, Medicine, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances.

Product Line

Portable: Minimeta, Micmeta, YT-1200H-S, SKY3000, SKY2000, SKY8000, SKY1000, MAXMETA
Fixed: YT-95H, YT-98H, YT-96H, SG100, SG200
Controllers: YT-1100H, YT-1600H, YT-1800H
Particle Counter: AQD5000, SKY6000-PM, SKY2000-PM

Additional Documentation
